Inline PCB Depaneling Router
The R30 Inline Depaneling Machine is designed for efficient processing of PCBs up to 450 x 350 mm. This advanced machine automates the entire workflow, including PCB loading, alignment, cutting, and transfer to the unload position, along with automatic grasp handling. It can be equipped with a vacuum PCB loader, shuttle fixture, or other solutions to handle PCBs. Additionally, it features cutting point checking and cutting edge compensation through optical inspection, providing an extra layer of accuracy and reliability in operation.

Feature

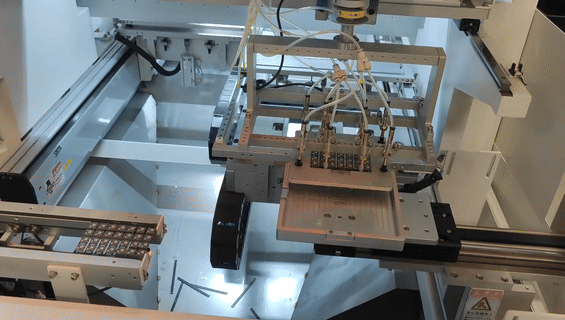

Shuttle Fixture

A shuttle fixture with PCB is transported to unload position. Pick up nozzle position can be fixed.
Image Orientation Program

PCB is scanned by CCD camera and the fiducial mark and cutting path is just teach on the PCB image
Cutting Edge Compensation

When one segment reaches limit, it switches to another segment to continue
Dual Table with Vacuum Loader

Dual table to minimize idle time.
Routing Quality Inspection

An advanced CCD camera to automatically detect the cutting point quality after cutting
Auto Cutter Exchange

Cutter is changed at station when it reaches limited.
Specification
Working Mode
Alignnment
Max Panel Size
Cutting Inspection
AI Programming
Repeatability
Clearance
Dimension
Inline Dual Table
High Resolution CCD
450 x 350mm (R30P)
350 x 300mm (R30)
Optional Cutting Edge Inspection and Compensation
Optional Automatic Generate Cutting Points
+/-0.02mm
40mm (Or Specify)
2457 x 1190 x 1929 mm (R30P)
2167 x 1101 x 1709 mm (R30)
Layout
