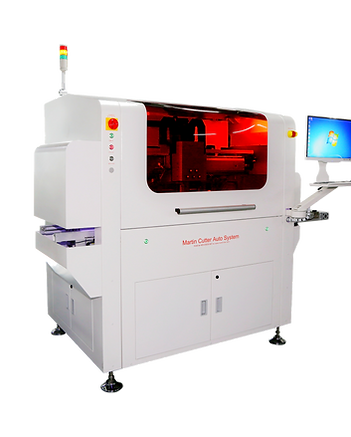

MT3000
Inline PCB Depaneling
Inline PCB Router PCB Separator
-Solution for Low-Stress Depanelization
-A quick and easy method to learn and use by image orientation programming
-Automatic Alignment Compensation by CCD camera
-Milling Cutter intelligent mode
-Whole process monitoring on the operation error
-Read PCB or Fixture QR code load program
-MES Ready
Inline PCB Depaneling
Inline PCB router
Inline PCB cutting
Inline PCB cutting machine
Inline PCB depaneling machine
PPCB separator
Inline PCB separator
Feature
Feature
Feature
Image Orientation Programming
Dual Table
Intelligent Cutting Mode
PCB is scanned by CCD camera and the fiducial mark and cutting path is just teach on the PCB image
Dual table can minimize the idle time. When one table is routing, the other table can exchange the PCB
Cutter is divided into several segments. When one segment reaches the cutting distance limit, it switches to another segment to continue thus, increasing the lifetime of cutting bit
Specification
PCB Size
Standard: 300x350mm
Routing Mode
Straight Line
Curve
Arc
Work Mode
Inline Dual Table
Max PCB Thickness
3mm
Repeatability
+/-0.02mm
Spindle Speed
Max 60000 rpm
X Y cutting Speed
0-100 m/s
Cutting Diameter
0.8-3.0mm
Vacuum Cleaner
Upper or Lower
Air Supply Source
0.5 Mpa
Dimension
2160W x 1150D x 1700H mm
Weight
900kg
