Offline Depaneling Router

R10

Home    >    Product     >     Offline Router

Single Table Compact Offline Depaneling Router

R10P is a Single Table Offline Depaneling Machine is designed for efficiency and precision in PCB processing. It can handle PCB sizes up to 500 x 500 mm.

PCB Depaneling
Offline PCB Depaneling
Offline PCB router
Offline PCB cutting machine
PCB cutting machine
Offline PCB cutting machine
PCB separator
offline PCB separator

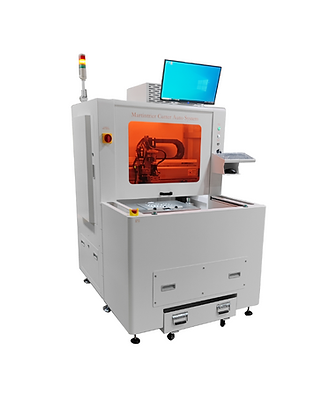

Machine (1).png
Feature

Spindle Module

Spindle Module

Spindle Module with Cutter Existing Sensor and Ionizer

Intelligent Cutter Mode

Intelligence cutter_edited.jpg

When one segment reaches limit, it switches to another segment to continue

Image Orientation Program

Image Orientation Programming.jpg

PCB is scanned by CCD camera and the fiducial mark and cutting path is just teach on the PCB image

Auto Cutter Exchange

Auto Change Cutter.jpg

Cutter is changed at station when it reaches limited. (Optional)



Specification
